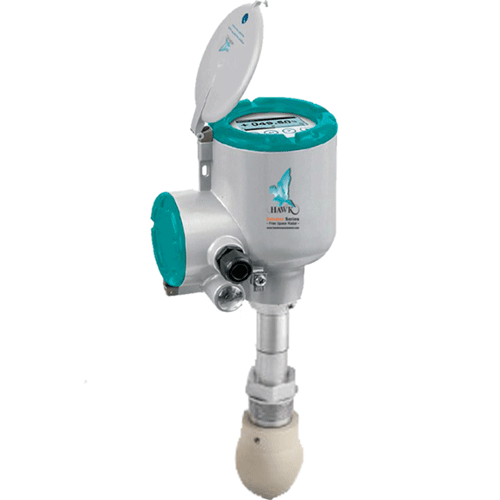

Senator S24C Series - 24GHz for Corrosive Liquids

Senator S24C 시리즈

cranemaster

제품특징

최대 측정거리 100M
최대 측정온도 +200도 및 최대 측정압력 100 barg
플랜즈 보호 기능과 함께 입증 된 PTFE 및 PEEK드롭 안테나
METAGLAS 디자인을 사용한 커플링 하우징 및 이중 밀봉
Accuracy ±2 mm / ±0.08¨
Flange plate protection and Drop antennas made of PTFE or PEEK for condensing and corrosive applications
Ellipsoidal shape and smooth surface minimize scaling on the Drop antenna
Metallic Horn (316L) DN200 / 8¨ for measuring distances up to 100 m / 328 ft. Can be equipped with purging system if required.
Antenna extensions to suit any nozzle length
Quick coupling system permits removal of the converter under process conditions and 360° rotation to make the display screen easier to read
Diagnosis functions according to NAMUR NE 107
Conforms to NAMUR Recommendations NE 21, NE 43 and NE 53
Measures non-Ex applications up to +700°C / +1292°F (for example: molten salt in solar plants)
2-wire loop-powered 24 GHz transmitter (LPR and TLPR) for liquids
Can measure in fast moving processes (≤60 m/min / 196.85 ft/min)

이 유니트는 FMCW 기술을 사용하는 비접촉 레이더레벨 트랜스미터입니다.

액체레벨 및 부피를 측정합니다.

출렁임이 심각 액체 및 부식성 액체의 레벨을 측정하는 데 이상적입니다.

Accuracy ±2 mm / ±0.08¨
Flange plate protection and Drop antennas made of PTFE or PEEK for condensing and corrosive applications
Ellipsoidal shape and smooth surface minimize scaling on the Drop antenna
Metallic Horn (316L) DN200 / 8¨ for measuring distances up to 100 m / 328 ft. Can be equipped with

purging system if required.

Antenna extensions to suit any nozzle length
Quick coupling system permits removal of the converter under process conditions and 360° rotation to

make the display screen easier to read

Diagnosis functions according to NAMUR NE 107
Conforms to NAMUR Recommendations NE 21, NE 43 and NE 53
Measures non-Ex applications up to +700°C / +1292°F (for example: molten salt in solar plants)
2-wire loop-powered 24 GHz transmitter (LPR and TLPR) for liquids
* Can measure in fast moving processes (≤60 m/min / 196.85 ft/min)
